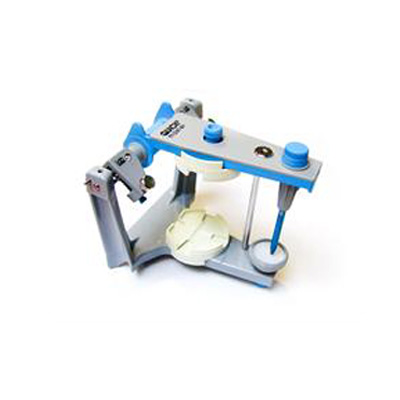

Articulateur QUICK master lab.
Catalogue Number: 7090025
Manufacturer Fag-Dentair
- Made by Fag-Dentaire - France
- Semi-adjustable articulator anatomical
- Type: Arcon
- Map reference: Frankfurt
- Intercondylar distance: 110 mm
- Condylar slope: 25 ° or 40 °
- Bennett angle: 0 ° 10 ° 15 ° 20 °
- Lateral Movement: C1 = 0.5 mm / 1 mm = C2 / C3 = 1.5 mm
- Moving into propulsion: 0-6 mm
- System locking centric
- Distance between mounting plates: 87 mm
- Mounting the upper model: QUICK face bow or table mount 10 °
- Weight: 530 g
- Construction: Steel-Advanced Materials
