Yeti digi MILL 5
Catalogue Number: 1510030

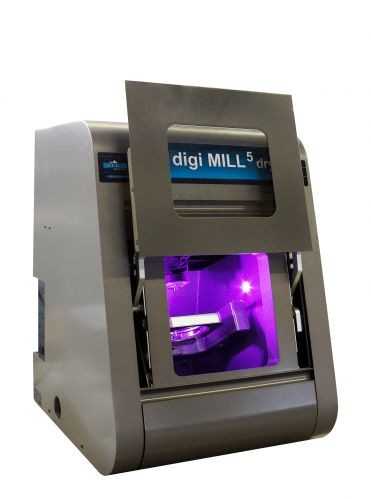

Simultaneous 5-axis German milling machine - Yeti digi MILL 5
In order to maintain the high quality of the scanning product received from the DSI6000 impression scanner, it is important to work with a quality milling machine. The Yeti digi MILL 5 milling machine is fully developed and manufactured by a German manufacturer that is one of the leading manufacturers of high quality dental milling machines in the world with experience of over 25 years in the field of building machines and developing CAM software.
The combination of a machine that is entirely produced and assembled by the same manufacturer, including the development of electronic components and the software designated for use by the dental technicians and dentists, assures quality and performance much above the average for the customer. The system mills with very high accuracy including the milling of undercuts.
The milling system can include four or five axes in dry milling with a wet milling option in a 5-axis model. Milling can be performed on a wide range of materials including all of the following types of materials: titanium, zirconia, EMAX, PMMA, CrCo (metal), wax, plastic and composite. In addition, there is an option of purchasing the machine with 8 blanks changer.
Technical Data:
Types of Material | Plastic, wax, zirconia, composite, cobalt chrome, EMAX (glass ceramics), PMMA |
Size | Length 45.5 cm X Width 49 cm X Height 54 cm |
Weight | 75 kg |
Axes | 5 |
Drill Cartridge | 16 units |
Axis A | 360 degrees |
Axis B | 30 degrees |
Disk Diameter | 98.5 mm |
Disk Thickness | 10 mm – 30 mm |
Spindle | Up to 60,000 RPM |
